DD-Frame RAU
The remote actuation unit (RAU) is a factory-fitted module that enables the automated switching of a DD-Frame circuit breaker. The RAU internally actuates the circuit breaker both ON and OFF. The RAU is mounted on the left-hand side of the circuit breaker and can actuate up to three poles. The RAU is available with circuit breakers with a standard toggle handle only. The unit has an LED that provides an indication of the mode of operation (remote or manual) and status. The second is a color indicator which shows the position of the latching mechanism of the connected circuit breaker – green for OFF and red for ON. The RAU provides the option to set the operation mode between remote or manual. This is selected by a switch situated on the front of the RAU.
Showing all 7 results
-

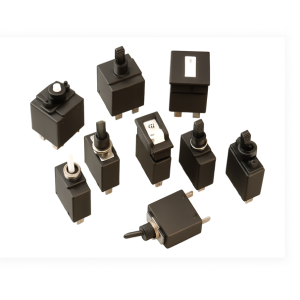

Custom Circuit Breakers
SELECT PRODUCT -

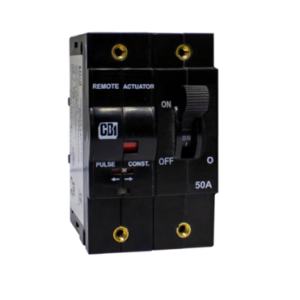

DD-Frame RAU: 2P, standard handle with plug-in termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page -
DD-Frame RAU: 2P, standard handle with stud termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page -

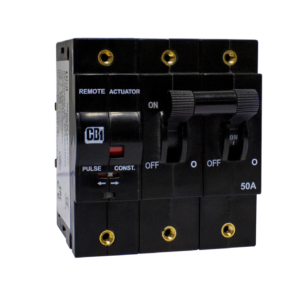

DD-Frame RAU: 3P, standard handle with plug-in termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page -
DD-Frame RAU: 3P, standard handle with stud termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page -

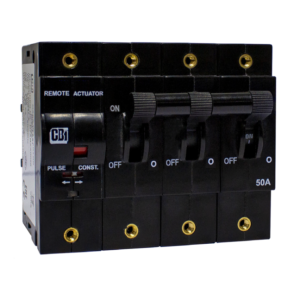

DD-Frame RAU: 4P, standard handle with plug-in termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page -
DD-Frame RAU: 4P, standard handle with stud termination
SELECT PRODUCT This product has multiple variants. The options may be chosen on the product page
